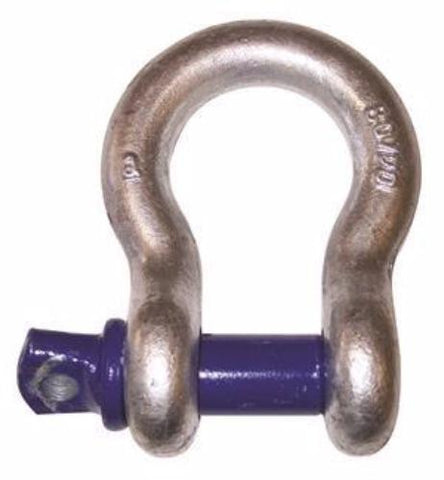

Peer-Lift Screw Pin Anchor Shackles (RR-C-271F, Type IVA, Grade A, Class 2)

Product Number: 8058105

Peerless Industrial Group

  • $0.84


Ideal for those applications where frequent pin removal is needed. Meet or exceed FED SPEC RR-C-271 requirements Hot Dipped Galvanized to ASTM A153 Proof load at 2.2 times Working Load Limit Meet ASME B30.26 requirements. General Safety Guidelines

STOCK # Trade Size Pin Dia (D) Dimensions (Inches) Lbs. Per Each Working Load Limit (Ton)
Individual UPC
HDG Inches W A E (min) G (max) B (min)
8058105 3/16 1/4 0.375 0.875 0.562 0.625 0.180 0.06 1/3
8058205 1/4 5/16 0.469 1.125 0.750 0.875 0.240 0.11 1/2
8058305 5/16 3/8 0.531 1.250 0.812 1.000 0.300 0.19 3/4
8058405 3/8 7/16 0.656 1.438 0.938 1.125 0.360 0.31 1
8059205 7/16 1/2 0.750 1.688 1.062 1.250 0.420 0.49 1-1/2
8058505 1/2 5/8 0.812 1.875 1.188 1.375 0.480 0.73 2
8058605 5/8 3/4 1.062 2.375 1.500 1.875 0.590 1.37 3-1/4
8058705 3/4 7/8 1.250 2.812 1.750 2.125 0.710 2.36 4-3/4
8058805 7/8 1 1.438 3.312 2.000 2.375 0.830 3.62 6-1/2
8058905 1 1-1/8 1.688 3.750 2.312 2.625 0.950 5.07 8-1/2
8058005 1-1/8 1-1/4 1.812 4.250 2.625 2.875 1.070 7.41 9-1/2
8059005 1-1/4 1-3/8 2.031 4.688 2.875 3.250 1.190 9.51 12
8059305 1-3/8 1-1/2 2.250 5.250 3.250 3.500 1.310 13.25 13-1/2
8059105 1-1/2 1-5/8 2.375 5.750 3.375 3.750 1.420 17.70 17
8059405 1-3/4 2 2.875 7.000 4.500 4.500 1.660 30.40 25
8059505 2 2-1/4 3.250 7.750 5.250 5.250 1.900 45.04 35
