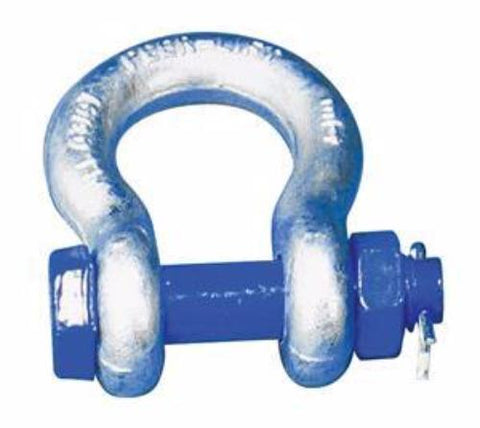

Peer-Lift Bolt, Nut & Cotter Anchor Shackles (RR-C-271F, Type IVA, Grade A, Class 3)
Product Number: 8063005
- $2,36729 $2,367.29
Are complete with bolt, nut and cotter pin. Meet or exceed FED SPEC RR-C-271 requirements Hot Dipped Galvanized to ASTM A153 Proof load at 2.2 times Working Load Limit Meet ASME B30.26 requirements. General Safety Guidelines

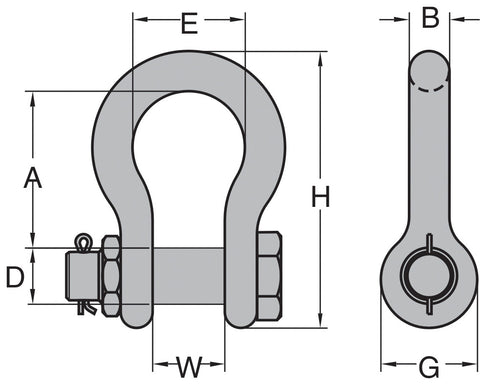

| STOCK # | Trade Size | Pin Dia (D) | Dimensions (Inches) | Lbs. Per Each | Working Load Limit (Ton) | ||||
| UPC TAGGED | |||||||||
| HDG | Inches | W | A | E (min) | G (max) | B (min) | |||
| 8063005 | 3/16 | 1/4 | 0.375 | 0.875 | 0.562 | 0.625 | 0.180 | 0.06 | 1/3 |
| 8063105 | 1/4 | 5/16 | 0.469 | 1.125 | 0.750 | 0.875 | 0.240 | 0.11 | 1/2 |
| 8063205 | 5/16 | 3/8 | 0.531 | 1.250 | 0.812 | 1.000 | 0.300 | 0.22 | 3/4 |
| 8063305 | 3/8 | 7/16 | 0.656 | 1.438 | 0.938 | 1.125 | 0.360 | 0.33 | 1 |
| 8063405 | 7/16 | 1/2 | 0.750 | 1.688 | 1.062 | 1.250 | 0.420 | 0.51 | 1-1/2 |
| 8063505 | 1/2 | 5/8 | 0.812 | 1.875 | 1.188 | 1.375 | 0.480 | 0.79 | 2 |
| 8063605 | 5/8 | 3/4 | 1.062 | 2.375 | 1.500 | 1.875 | 0.590 | 1.68 | 3-1/4 |
| 8063705 | 3/4 | 7/8 | 1.250 | 2.812 | 1.750 | 2.125 | 0.710 | 2.72 | 4-3/4 |
| 8063805 | 7/8 | 1 | 1.438 | 3.312 | 2.000 | 2.375 | 0.830 | 3.95 | 6-1/2 |
| 8063905 | 1 | 1-1/8 | 1.688 | 3.750 | 2.312 | 2.625 | 0.950 | 5.67 | 8-1/2 |
| 8064005 | 1-1/8 | 1-1/4 | 1.812 | 4.250 | 2.625 | 2.875 | 1.070 | 8.28 | 9-1/2 |
| 8064105 | 1-1/4 | 1-3/8 | 2.031 | 4.688 | 2.875 | 3.250 | 1.190 | 11.73 | 12 |
| 8064205 | 1-3/8 | 1-1/2 | 2.250 | 5.250 | 3.250 | 3.500 | 1.310 | 15.83 | 13-1/2 |
| 8064305 | 1-1/2 | 1-5/8 | 2.375 | 5.750 | 3.375 | 3.750 | 1.420 | 18.35 | 17 |
| 8064405 | 1-3/4 | 2 | 2.875 | 7.000 | 4.500 | 4.500 | 1.660 | 33.93 | 25 |
| 8064505 | 2 | 2-1/4 | 3.250 | 7.750 | 5.250 | 5.250 | 1.900 | 52.29 | 35 |
