Base for 1000 lb Steel Davit Crane

Product Number: OZSOC2

OZ Lifting

  • $287.28

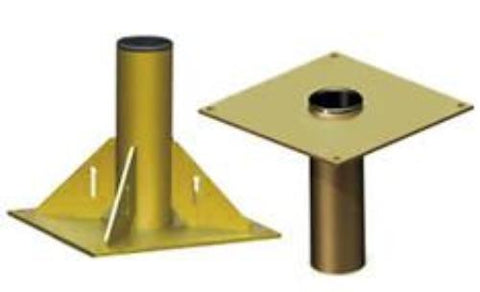

Socket or Pedestal Base for STEEL DAVIT CRANE

This is the Socket or Pedestal base ONLY

STEEL Davit Crane Description

FEATURES and BENEFITS
  • 360 degree rotation
  • 4 different boom height adjustments
  • 1000 lb. rating
  • Manual Din rated CE winch with brake. Includes power drill adaptor
  • Zinc plated finish
  • AC & DC winch option
  • Individually tested and includes test certificate
  • Portable
  • Pedestal or Socket bases sold separately (comes with mounting template)

*AC AND DC POWER WINCHES NOW AVAILABLE.

Eliminate Costly Mistakes...

Load Ratings

David 1000 by OZ – Model# OZ1000DAV *Table based on 1/4 inch wire rope. 3/16” cable will be lower.

  1st. Layer Mid. Drum Full Drum
(lbs.) 1000 lbs. 875 lbs. 550 lbs.



  3/16″ Cable
Lift 6 ft. 14 ft. 22 ft. 31 ft. 41 ft. 52 ft. 64 ft. 77 ft. 90 ft.
Capacity 800 lbs. 800 lbs. 800 lbs. 800 lbs. 775 lbs. 725 lbs. 650 lbs. 650 lbs. 550 lbs.



  1/4″ Cable
Lift 9 ft. 14 ft. 20 ft. 27 ft. 35 ft. 43 ft. 50 ft.
Capacity 1000 lbs. 875 lbs. 775 lbs. 700 lbs. 625 lbs. 575 lbs. 550 lbs.

*Dimension and weights are for reference only and subject to change without notice.
