Approved for Overhead Lifting

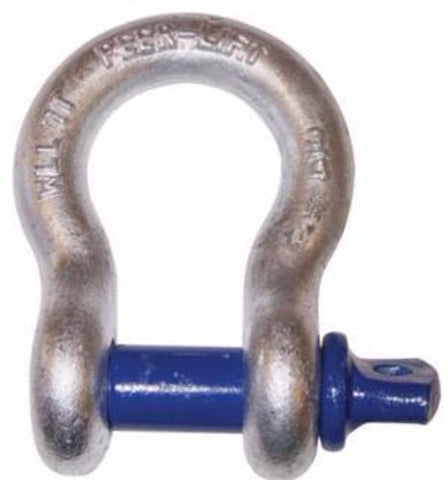

Alloy Screw Pin Anchor Shackles

Product Number: 8058103

Peerless Industrial Group

  • $1.35


Forged Alloy Body & Pin Meet or exceed FED SPEC RR-C-271 requirements Meet ASME B30.26 requirements Hot Dipped Galvanized to ASTM A153 Proof load at 2.2 times Working Load Limit. General Safety Guidelines

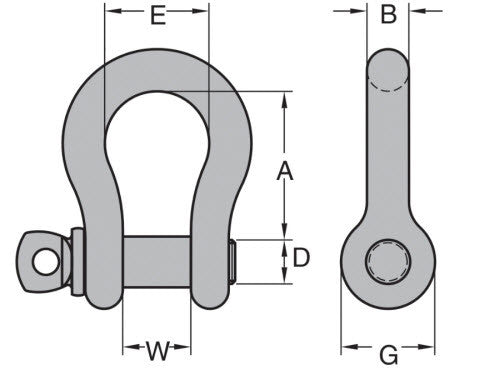

Stock # Trade Size Pin Dia (D) Dimensions (Inches) Lbs. Per Each Working Load Limit (Ton)
HDG Inches W A E (min) G (max) B (min)
8058103 3/16 1/4 0.375 0.875 0.560 0.620 0.180 0.1 1/2
8058203 1/4 5/16 0.470 1.125 0.750 0.875 0.240 0.1 3/4
8058303 5/16 3/8 0.530 1.250 0.810 1.000 0.300 0.2 1-1/4
8058403 3/8 7/16 0.655 1.435 0.940 1.120 0.360 0.3 2
8059203 7/16 1/2 0.720 1.685 1.060 1.250 0.420 0.5 2-2/3
8058503 1/2 5/8 0.815 1.875 1.190 1.380 0.480 0.7 3-1/3
8058603 5/8 3/4 1.065 2.405 1.500 1.880 0.590 1.4 5
8058703 3/4 7/8 1.250 2.825 1.750 2.120 0.710 2.4 7
8058803 7/8 1 1.500 3.310 2.000 2.370 0.830 3.6 9-1/2
8058903 1 1-1/8 1.690 3.750 2.310 2.620 0.950 5.1 12-1/2
8059003 1-1/4 1-3/8 2.030 4.690 2.880 3.250 1.190 9.5 18
8059103 1-1/2 1-5/8 2.375 5.750 3.380 3.750 1.420 17.7 30
8059403 1-3/4 2 2.875 7.000 4.500 4.500 1.660 30.4 40
8059503 2 2-1/4 3.250 7.750 5.250 5.250 1.900 45.0 50
