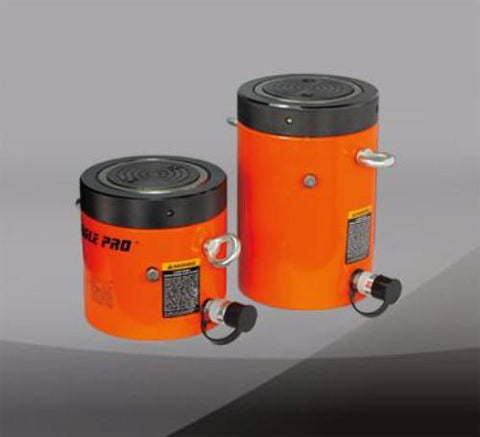

200 T - EL Series - Single-Acting, With Locking Collars

Product Number: EL-2002T

Eagle Pro

  • $2,051.41


The Eagle Pro EL series includes an alloy steel lock nut for mechanical load holding.  The EL series is constructed of a high strength alloy steel to maximize durability.  The hardened chrome piston reduces damage caused from wear and corrosion.  The over flow port functions as a stroke limiter.

The EL series includes hardened grooved replaceable saddles.  Composite bearings prevent metal-to-metal contact.  Quick reaction times are obtained through heavy-duty straight pull return springs.  An environmentally friendly coating process produces a finish that further increases durability.  The included rugged, EAB-201A female coupler and dust cover prevent dirt and debris from entering the hydraulic system. The Eagle Pro EL series complies with ASME B30.1 standards.

MODEL CYLINDER CAPACITY @ 10,000 PSI (700 BAR) STROKE CYLINDER EFFECTIVE AREA OIL CAPACITY
METRIC TON (US TON) IN IN2 IN3
EL-2002T 200 (220) 1.97 41.66 81.98
EL-2006T 5.90 41.66 245.95
EL-20010T 9.83 41.66 409.92
