160 T - ELL Series - Low Profile with Locking Collars - 2" STROKE HYD RAM
Product Number: ELL-1602
- $1,83420 $1,834.20

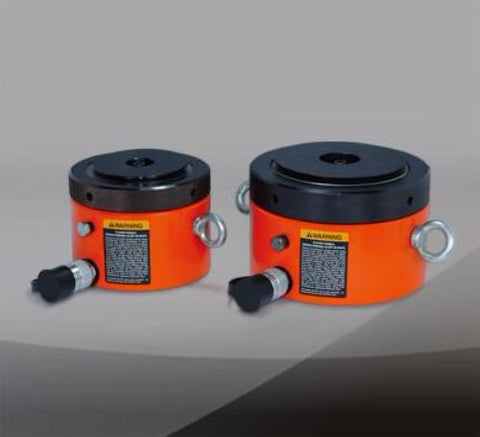

The Eagle Pro ELL Series features a low-profile, flat design for use in confined spaces. An alloy steel lock nut allows for mechanical load holding. The ELL series comes equipped with a tilting saddle standard. The overflow port functions as a stroke limiter. Dust covers are included with the rugged, EAB-201A female coupler. The Eagle Pro ELL Series complies with ASME B30.1 standards.
1. High-strength steel lock nut.
2. Tilting saddle is standard.
3. Hardened and chromed, threaded piston reduces wear and corrosion.
4. High-strength composite bearings provides support for off-center loads without damaging the cylinder walls.
5. Industrial U-cup style seal prevents costly leaks.
6. High-strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.
7. Standard EAB-201A coupler provided with dust cap.
|MODEL||CYLINDER CAPACITY @ 10,000 PSI (700 BAR)||STROKE||CYLINDER EFFECTIVE AREA||OIL CAPACITY|
|METRIC TON (US TON)||IN||IN2||IN3|
