BEAM TROLLEY WITH CLAMP-OZ Lifting

BEAM TROLLEY WITH CLAMP

Product Number: OZ05QAT

OZ Lifting

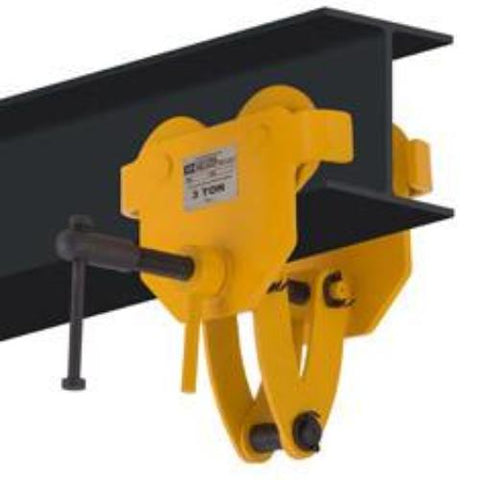

Beam Trolley With Clamp

This versatile Trolley Clamp Combo gives you the option to roll like a trolley or lock down like a clamp, it’s lightweight, moves super quick from beam to beam, has precision ball bearing trolley wheels,anti-drop plate, durable baked enamel finish, stainless I.D. tag and Individual test certificate and serial number. Each trolley has a lock down screw for added safety, this unique trolley also adjusts to most I, W , and S beams with ease.Standards:

CE
Complies with portions of ASME 30.16

FEATURES and BENEFITS
  • Lightweight robust construction
  • Fits to most I, S, and W-Beams
  • Safety handle lock
  • Durable baked enamel paint protection
  • Precision ball bearing trolley wheels
  • Anti-drop plate
  • Stainless steel ID tag
  • Individual test certificate & serial number
    Product Specifications

    (.5, 1, 2, 3, 5 and 10 tons)

    PRODUCT CODE OZ05BTC OZ1BTC OZ2BTC OZ3BTC OZ5BTC OZ10BTC
    Safe working load (lbs) 1,000 (lbs) 2,000 (lbs) 4,000 (lbs) 6,000 (lbs) 10,000 (lbs) 20,000 (lbs)
    Adjustable flange width (in) 3.63-7.12 2.48-8.27 (in) 2.99-8.27 (in) 2.99-8.27 (in) 3.94-12.01 (in) 6.89-12.01(in)
    A 11.75 (in) 13.98 (in) 14.71 (in) 14.17 (in) 18.50 (in) 18.90 (in)
    B 8.00 (in) 9.53 (in) 11.06 (in) 12.91 (in) 14.84 (in) 17.91 (in)
    Product dimensions C .75 (in) .88 (in) .88 (in) .97 (in) 1.11 (in) 1.65 (in)
    (min-max) D 5.87-7.12 (in) 5.75-7.22 (in) 6.06-7.22 (in) 6.35-7.97 (in) 8.81-10.61 (in) 9.00-10.51 (in)
    Minimum Curve Radius (ft) 3.28 (ft) 3.28 (ft) 3.61 (ft) 4.26 (ft) 4.60 (ft) 5.57 (ft)
    Net weight (lbs) 13 (lbs) 25 (lbs) 38 (lbs) 57 (lbs) 102 (lbs) 205 (lbs)

    WHEEL DIMENSIONS (.5, 1, 2, 3 and 5 tons)

    WHEEL DIMENSIONS OZ05BTC OZ1BTC OZ2BTC OZ3BTC OZ5BTC
    E 3.22 (in) 4.02 (in) 5.00 (in) 5.79 (in) 6.30 (in)
    F 2.28 (in) 2.96 (in) 3.55 (in) 4.34 (in) 4.81 (in)
