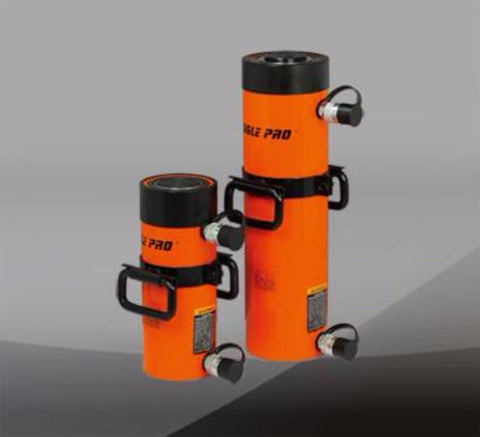

50 T - ED Series - Double-Acting, General-Purpose

Product Number: ED-506

Eagle Pro

  • $2,224.91


The Eagle Pro ED series produces fast and controlled piston contraction thanks to the double acting operation.  A built-in safety valve prevents accidental over-pressurization.  Most models include collar, piston threads, and base mounting holes to make fixturing a simple task.

Piston jamming and mushrooming is prevented by the cylinder’s hardened, and E-coated snap-in saddle. The ED series enhances durability with a hardened and chromed piston that reduces wear and corrosion.  ED series cylinders are easy to move around the job site with the addition of carrying handles (and eyebolts on larger models) that ease positioning and carrying.  A durable, anti-corrosive finish is added using an environmentally friendly coating process.  The ED Series comes with rugged, EAB-201A female coupler, complete with heavy-duty dust covers, preventing dirt and debris from entering the hydraulic system The ED Series complies with ASME B30.1 standards.

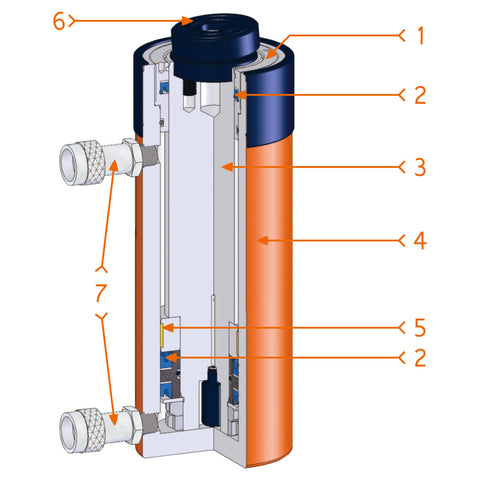

1.  Hardened alloy steel guide ring eliminates over travel and provides support to reduce wear from off-center loads.

2.  Industrial U-cup seals prevent costly leaks.

3.  Hardened and chromed piston reduces wear and corrosion.

4.  High-strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.

5.  High-strength composite bearing provides support for off-center loads without damaging the cylinder walls.

6.  Optional tilt saddles help prevent cylinder damage from off-center loads.

7.  Standard couplers provided with dust caps.

MODEL CYLINDER CAPACITY @ 10,000 PSI (700 BAR) STROKE MAX. CYLINDER CAPACITY CYLINDER EFFECTIVE AREA OIL CAPACITY COLLAPSED HEIGHT EXTENDED HEIGHT
ADVANCE RETRACT ADVANCE RETRACT ADVANCE RETRACT
A B
METRIC TON (US TON) IN METRIC TON (US TON) METRIC TON (US TON) IN2 IN2 IN3 IN3 IN IN
ED-506 50 (55) 6.14 50 (55) 16 (17.6) 10.99 3.19 67.47 19.60 13.03 19.17
ED-5013 50 (55) 13.15 50 (55) 16 (17.6) 10.99 3.19 144.45 41.97 20.04 33.19
ED-5020 50 (55) 20.12 50 (55) 16 (17.6) 10.99 3.19 221.00 64.21 28.86 48.98
