250 T - EL Series - Single-Acting, With Locking Collars

Product Number: EL-2502T

Eagle Pro

  • $4,266.11


The Eagle Pro EL series includes an alloy steel lock nut for mechanical load holding.  The EL series is constructed of a high-strength alloy steel to maximize durability.  The hardened chrome piston reduces damage caused from wear and corrosion.  The overflow port functions as a stroke limiter.

The EL series includes hardened grooved replaceable saddles.  Composite bearings prevent metal-to-metal contact.  Quick reaction times are obtained through heavy-duty straight pull return springs.  An environmentally friendly coating process produces a finish that further increases durability.  The included rugged, EAB-201A female coupler and dust cover prevent dirt and debris from entering the hydraulic system. The Eagle Pro EL series complies with ASME B30.1 standards

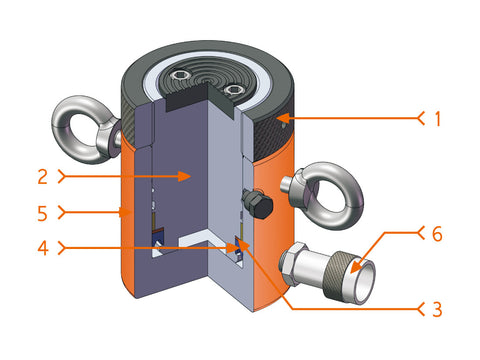

1.  High-strength steel lock nut.

2.  Hardened and chromed piston reduces wear and corrosion.

3.  High-strength composite bearing provides support for off-center loads without damaging the cylinder walls.

4.  Industrial U-cup style seal prevents costly leaks.

5.  High-strength alloy steel body is precision machined to reduce wear and features a baked enamel finish for durability and corrosion protection.

6.  Standard EAB-201A coupler provided with dust cover.

MODEL CYLINDER CAPACITY @ 10,000 PSI (700 BAR) STROKE CYLINDER EFFECTIVE AREA OIL CAPACITY
METRIC TON (US TON) IN IN2 IN3
EL-2502T 250 (275) 1.97 56.28 110.75
EL-2506T 5.90 56.28 332.24
